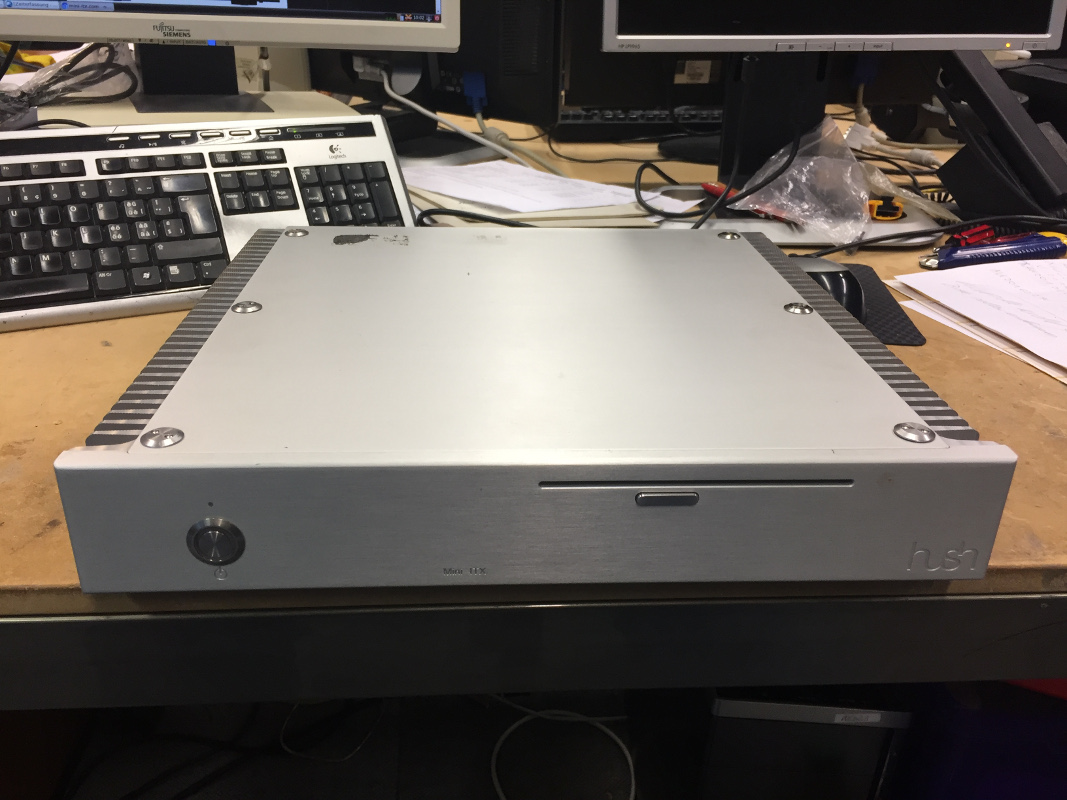

Hush CA100-D

Imprimer
Core(TM)2 Duo T9600 2.8 Ghz, 160 GB Hdd, 2 Gb Ram So-Dimm DDR3, Intel GM45 Express Grafik onboard, Netzteil 19V 100W extern
Absolut lautlos
Numéro d'article: 002712
200,00 CHF
Poser une question sur ce produit
Hush
Stock: 1
Description du produit

Spezifikationen Mainboard (CA100-D)

Audio Realtek ALC262 2-channel High Definition Audio. Three stereo ADCs support 16/20-bit PCM format for multiple input streaming. High quality analog differential CD input. 16/20/24-bit S/PDIF-OUT supports 44.1K/48K/96K/192kHz sample rate. 16/20/24-bit S/PDIF-IN supports 44.1K/48K/96K/192kHz sample rate.
BIOS Award BIOS. 16Mbit SPI flash memory
Chipset Intel chipset - Intel GM45 Express chipset, - Intel ICH9M I/O Controller Hub.
DAMAGE FREE INTELLIGENCE Monitors CPU/system temperature and overheat alarm. Monitors Vcore/12V/1.5V/5V/5VSB voltages and failure alarm. Monitors CPU/chassis fan speed and failure alarm. Read back capability that displays temperature, voltage and fan speed. Watchdog timer function
Dimensions Mini-ITX form factor. 170mm x 170mm (6.7" x 6.7")
ENERGY EFFICIENT DESIGN ACPI v2.0 specification. System Power Management. Wake-On-Events include: - Wake-On-PS/2 Keyboard/Mouse, - Wake-On-USB Keyboard/Mouse, - Wake-On-LAN, - Wake-On-Ring, - RTC timer to power-on the system. CPU stopped clock control. Microsoft/Intel APM 1.2 compliant. AC power failure recovery
Expansion Slots 1 PCI Express x1 slot. 1 PCI slot.
Graphics Intel GMA 4500 integrated graphics engine - Supports 3D, 2D and video capabilities, DX10 and OpenGL 2.1.
Humidity 10% to 90%
I/O Connectors 2 connectors for 4 additional external USB 2.0/1.1 ports. 1 LVDS LCD panel connector. 1 LCD/inverter power connector. 1 Digital I/O connector. 1 front audio connector for line-out and mic-in jacks. 1 CD-in connector. 1 S/PDIF connector. 4 Serial ATA connectors. 1 40-pin IDE connector. 1 20-pin ATX power connector. 1 front panel connector. 2 fan connectors
IDE JMicron JMB368 PCI Express to PATA host controller. Supports Native Mode operation. Supports PIO Modes 0, 1, 2, 3, 4. Supports Multiword DMA Modes 0, 1, 2. Supports Ultra DMA 33/66/100/133. Supports ATA/ATAPI command
LAN Two Realtek RTL8111C-GR PCI Express Gigabit Ethernet controllers. Integrated 10/100/1000 transceiver. Supports Full Duplex flow control (IEEE 802.3x). Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab. Supports power down/link down power saving.
REAR PANEL I/O PORTS 1 mini-DIN-6 PS/2 mouse port. 1 mini-DIN-6 PS/2 keyboard port. 2 DB-9 serial ports - COM2 supports RS232/485. 1 DB-15 VGA port. 1 DVI-I port (DVI-D signal only). 2 RJ45 LAN ports. 4 USB 2.0/1.1 ports. Mic-in, line-in and line out jacks
SATA 4 Serial ATA ports compliant with SATA 1.0 specifications. SATA speed up to 3Gb/s (SATA 2.0). Integrated Advanced Host Controller Interface (AHCI) controller
System Memory Two 204-pin SODIMM sockets. Supports DDR3 800/1066MHz. Supports up to 8GB system memory. 64-bit wide per channel. 256Mb, 512Mb, 1Gb and 2Gb memory technologies. Supports non-ECC x8 and x16 DIMMs. Supports On-Die Termination (ODT). Supports partial writes to memory using data mask signals (DM).
Temperature 0oC to 60oC
System Chipset Intel ICH
Form Factor ATX

Features

  • 1 LVDS
  • CHIPSET - Intel GM45/ICH9M
  • COM - 2 COM
  • CPU - Intel Core2 Duo
  • DIO - 8-bit DIO
  • DISPLAY OUTPUTS - 1 DVI-I (DVI-D signal only), 1 VGA,
  • EXPANSION - 1 PCIe x1, 1 PCI
  • Intel Celeron
  • LAN - 2 Gigabit LAN
  • MEMORY - 2 DDR3 SODIMM up to 8GB
  • SATA - 4 SATA
  • USB - 8 USB
Prozessor Computer
  • Core 2 Duo
Prozessor-Taktfrequenz Computer
  • 2.8
Arbeitsspeicher Computer
  • 2048
Grafikkarte Computer
  • onboard
Festplatte Computer
  • 160
Netzteil Computer
  • 100
Bit Computer
  • 64
Bauform Computer
  • Spezial
optisches Laufwerk Computer
  • ohne
Kühlung Computer
  • passiv
Anzahl Prozessoren Computer
  • 1
Anschlüsse Computer
  • VGA
  • DVI-I
  • USB 2.0
  • Seriell RS-232
  • RJ45
  • PS/2
  • Audio
Schnittstellen Computer
  • SATA 300
  • PCI
  • PCI-Express 1x
