Individual-PC Asus P8B75-M

Drucken
Intel Core i5 3470T 2.9 GHz Dual-Core, 250GB HDD, 4GB Ram, USB 3.0, 420W Netzteil, DVD-Brenner lightScribe, Linux installiert
Artikelnummer: 002803
170,00 CHF
Vorrat: 0
Beschreibung

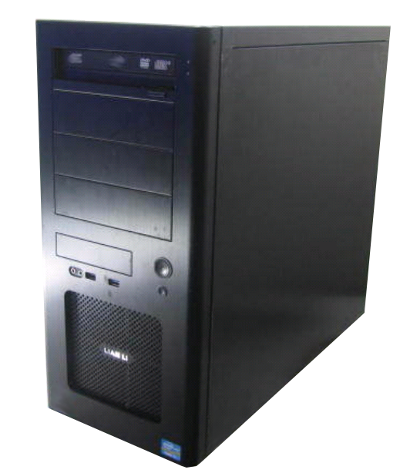

Gehäuse: Lian-Li Midi-Tower PC-8N, Mainboard-Blende an Rückseite fehlt

Netzteil: 420W

Mainboard ASUS P8B75-M:

CPU
Intel Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel B75

Memory
4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel 3rd generation processors.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

Expansion Slots
1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x4
2 x PCI

Storage
Intel B75 chipset :
5 x SATA 3Gb/s port(s), blue
1 x SATA 6Gb/s port(s), gray

LAN
Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)

Audio
VIA VT1708S 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

USB Ports
Intel® B75 chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Intel® B75 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x SATA 6Gb/s connector(s)
5 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x MemOK! button(s)

Prozessor Computer
  • Core i5
Prozessor-Taktfrequenz Computer
  • 2.9
Arbeitsspeicher Computer
  • 4096
Grafikkarte Computer
  • onboard
Festplatte Computer
  • 250
Netzteil Computer
  • 420
Medien Computer
  • DVD
  • CD
Bit Computer
  • 64
Bauform Computer
  • Midi-Tower
optisches Laufwerk Computer
  • DVD-Brenner
Kühlung Computer
  • Luft
Anzahl Prozessoren Computer
  • 1
Anschlüsse Computer
  • VGA
  • DVI-D
  • HDMI
  • USB 2.0
  • USB 3.0
  • RJ45
  • PS/2
  • Audio
Schnittstellen Computer
  • SATA 300
  • SATA 600
  • PCI
  • PCI-Express 4x
  • PCI-Express 16x
  • Seriell 9-Pin intern
  • Parallel 25-Pin intern
