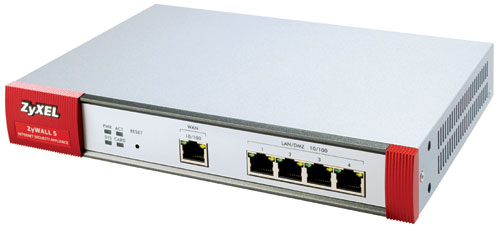

ZyXEL ZyWALL 5

Optimal Network Security for Small and Medium-sized Businesses

Virtual Private Network

• 10 simultaneous IPSec VPN Connections
• Max. 25Mbps 3DES/AES VPN performance
• Manual Key, IKE and PKI(X.509)
• IPSec NAT Traversal

Firewall Security

• Transparent Firewall (bridge mode)
• Stateful Packet Inspection
• DoS and DDoS Protection
• Real-time Attack Alert and Logs

Traffic Management

• Policy-based Traffic Shaping
• Priority-bandwidth Utilization
• Guaranteed and Maximum Bandwidth Allocation

Content Filtering

• Java/Active X/Cookie/Proxy Blocking
• URL and Keyword Blocking
• Web Content Filtering (Bluecoat)

Network

• DHCP client/relay/server
• PPPoE
• PPTP

System Management

• WebGUI (HTTP and HTTPS)
• Command Line Interface (Console, Telnet, SSH)
• Firmware Upgrade (WebGUI, TFTP/FTP/SFTP)
• Vantage Centralized Network Management*

Wireless

• IEEE 802.11b/11g compliant
• 128-bits WEP Encryption
• IEEE 802.1x Port-Based Authentication with RADIUS Client
• IPSec VPN over WLAN
• WPA

Specifications

Hardware Specification

• Power: 12VDC
• 4-port LAN/DMZ switch: 10/100 Mbps Ethernet
• WAN: 10/100 Mbps Ethernet
• Reset Button
• RS-232 DB9F: Console
• RS-232 DB9M: Dial Backup
• Extension Card Slot for Wireless & Optional service*

Physical Specification

• Item Dimensions(WxDxH):244 x 175 x35.5 mm(9.53" x 6.89" x 1.40")

• Item Weight:1,200g(2.65lb.)

Environmental Specification

• Operation Temperature: 5º C to 45º C (41º F to 113º F)

• Operation Humidity: 20% to 95% RH (non-condensing)

Certification

• EMC: FCC Class B, CE-EMC Class B, C-Tick Class B, VCCI Class B
• Safety: CSA International, CE EN60950-1
