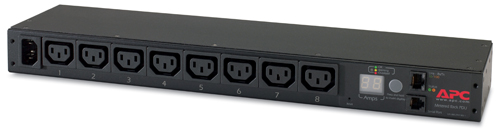

APC AP7920

Drucken
Rack PDU, Switched, 1U, 12A/208V, 10A/230V, (8)C13
Artikelnummer: 001689
APC AP7920
Beschreibung

Output

  • Nominal Output Voltage
    208V , 230V
  • Maximum Total Current Draw
    10
  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
  • Different voltages and corresponding amperages
    10A @ 230V, 12A @ 208VA

Input

  • Nominal Input Voltage
    200V , 208V , 230V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC-320 C14
  • Cord Length
    6.5ft ( 1.98meters )
  • Acceptable Input Voltage
    200-240VAC
  • Number of Power Cords
    1
  • Load Capacity
    2300VA
  • Maximum Input Current
    15A
  • Regulatory Derated Input Current (North America)
    12A

Physical

  • Maximum Height
    1.73inches ( 44mm , 4.4cm )
  • Maximum Width
    17.5inches ( 445mm , 44.5cm )
  • Maximum Depth
    4.25inches ( 108mm , 10.8cm )
  • Rack Height
    1U
  • Net Weight
    5.0lbs. ( 2.27kg )
  • Shipping weight
    7.6lbs. ( 3.45kg )
  • Shipping Height
    2.75inches ( 70mm , 7.0cm )
  • Shipping Width
    18.5inches ( 470mm , 47.0cm )
  • Shipping Depth
    13.5inches ( 343mm , 34.3cm )
  • Color
    Black

Environmental

  • Operating Environment
    32 - 113 °F ( 0 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-10000ft ( 0-3000meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-50000ft ( 0-15000meters )

Conformance

  • Approvals
    cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, UL 60950, UL Listed, VDE
