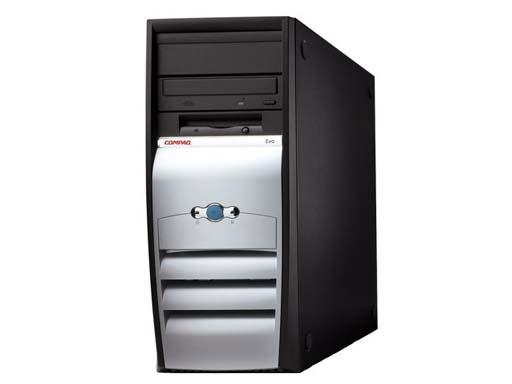

Compaq Evo D510 CMT

Print
Intel Pentium 4, 2.53 GHz, 512 Ram, Onboard Graphics, 40 GB HDD, CDRW-DVD Laufwerk
Article Number: 003801
30,00 CHF
Stock: 0
Description
Physical specifications
Feature
Description
Chassis dimensions (H x W x D)
44.8 x 16.8 x 42.7 cm (17.65 x 6.6 x 16.8 in)
Chassis weight
  • System weight: 11.8 kg (26.0 lb)
  • Weight supported: 45.5 kg (100 lb)
Environmental specifications
Feature
Description
Acoustics (with advanced power management - on)
Idle (HDD spinning but not seeking) = 22 dB
Shock
  • Operating: 5 G (with no damage being incurred)
  • Non-operating: 10 G (positive and negative directions front to back axis), 20 G (in all other axes)
Vibration
  • Operating: Random vibration at 0.000215 G²/Hz, 10 Hz to 300 Hz, (0.25 G nominal)
  • Non-operating: Random vibration at 0.0005 G²/Hz, 10 Hz to 500 Hz, (0.5 G nominal)
Relative humidity
  • Operating (maximum wet bulb temperature, non-condensing): 10% to 90% relative humidity (Rh), 28°C
  • Non-operating (maximum wet bulb temperature, non-condensing): 5% to 95% relative humidity (Rh), 38.7°C
Altitude (un-pressurized)
  • Operating: 0 to 3,048 m (10,000 ft) - This value may be limited by the type and number of options installed
  • Non-operating: 0 to 9,144 m (30,000 ft)
   NOTE:
Maximum allowable altitude change rate is 1500 ft/min.
Electrical specifications
Feature
Description
Power supply
ATX Power Supply - PFC with in 230 V mode (115 V/230 V line switch)
Operating voltage range
90 to 264 V ac (full ranging)
Rated voltage range
100 to 127 V ac (or 200 to 240 V ac)
Rated line frequency
50-60 Hz
Operating line frequency range
47-66 Hz
Rated input current
6 A @ 100 V ac (or 3 A @ 200 V ac)
Maximum rated power
220 W
Technical specifications
Feature
Description
Chipset
Intel 845G chipset
Architecture
P4/PCI/AGP 4X
Processor
Intel Pentium 4 processor 2.53 GHZ with 533 MHz front side bus, 512KB L2 cache
Memory
  • 512MB DDR Synch D-RAM PC2100 (266 MHz) Non-ECC (1 x 512)
Maximum memory
2GB
Bays
  • Two internal 3.5-inch ATA hard drive
  • Two external 5.25-inch half-height
  • One floppy 3.5-inch diskette drive
Wireless support
PCI card or external USB
Hard disk drives
  • 40GB 7200 RPM SMART III Ultra ATA/100
Mouse
PS/2 2-button scroll mouse
Graphics
  • Intel Extreme Graphics (integrated with Intel 845G chipset)
Removable storage
  • 1.44MB diskette drive
Optical storage
  • DVD-ROM/CDRW drive
Network interface card
  • Integrated Intel PRO/100 VM network connection
I/O ports
  • Parallel port: 1
  • Serial port: 2
  • PS/2 keyboard: 1
  • PS/2 mouse: 1
  • VGA adapter: 1
  • USB 2.0 ports: 6 (two front ports and four rear ports)
PCI slots
3 full-height slots on PCA (2 additional slots available via optional PCI extender card)
AGP slots
1 AGP 4X, 1.5 V
Audio
  • Integrated ADI 1981A audio with internal speaker
  • Mic-in: 1
  • Line-in: 1
  • Line-out: 1
  • Headphone-out: 1
Security locks
  • Kensington cable lock provision (lock not included)
  • Hood cover security loop (lock not included)
  • Smart cover lock (option) - Locking solenoid controlled via F10 setup (failsafe key)
