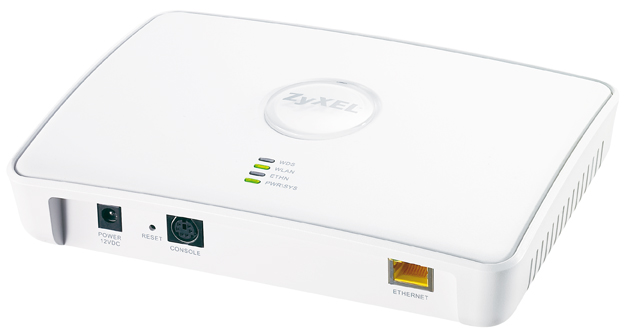

Zyxel NWA-3166

Print
wireless access point
Article Number: 002082
Notify Me
Ask a question about this product
ZyXEL
Stock: 0
Description

General

  • Power Over Ethernet (PoE)
    PoE
  • Authentication Method
    Extensible Authentication Protocol (EAP), RADIUS, Radio Service Set ID (SSID)
  • Height
    1.9 in
  • Depth
    5.5 in
  • Manufacturer
    ZyXEL Communications Corp.

Power Device

  • Nominal Voltage
    AC 120/230 V
  • Frequency Required
    50/60 Hz
  • Type
    external power adapter

Networking

  • Wireless Capability
    This product uses the draft version of the upcoming 802.11n standard. Its compatibility with other and future products is not guaranteed, and it may interfere with current 802.11b and g products.
  • Type
    wireless access point
  • Connectivity Technology
    wireless
  • Data Link Protocol
    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
  • Features
    MAC address filtering, Multiple SSID support, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, half duplex mode, manageable, power over Ethernet (PoE), wall mountable, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Trivial File Transfer Protocol (TFTP) support, VLAN support, WLAN controller mode, Wi-Fi Multimedia (WMM) support, Wireless Distribution System (WDS) support
  • Compliant Standards
    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
  • Wireless Protocol
    802.11a/b/g/n (draft 2.0)
  • Remote Management Protocol
    HTTP, SNMP
  • Data Transfer Rate
    300 Mbps
  • Spread Spectrum Method
    OFDM
  • Encryption Algorithm
    MD5, 128-bit WEP, 64-bit WEP, TLS, TTLS, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise
  • Status Indicators
    Power, status, link/activity
  • Line Coding Format
    DQPSK, CCK, 64 QAM, QPSK, 16 QAM
  • Authentication Method
    RADIUS, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP)
  • Power Over Ethernet (PoE)
    PoE
  • Line Coding Format
    16 QAM, 64 QAM, CCK, DQPSK, QPSK

Modem

  • Type
    none
  • Antenna Qty
    2

Miscellaneous

  • Encryption Algorithm
    128-bit WEP, 64-bit WEP, MD5, TLS, TTLS, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK

Interface Provided

  • Type
    management
  • Interface
    RS-232
  • Qty
    1
  • Connector Type
    6 pin mini-DIN (PS/2 style)

Antenna

  • Antenna
    Internal
  • Antenna Qty
    2
  • Antenna Form Factor
    internal

Environmental Parameters

  • Min Operating Temperature
    32 °F
  • Max Operating Temperature
    122 °F
  • Humidity Range Operating
    20 - 95%

Header

  • Brand
    ZyXEL
  • Product Line
    Zyxel
  • Model
    NWA-3166
  • Packaged Quantity
    1
  • Compatibility
    PC

Expansion Bays

  • Type
    none

Expansion Slots

  • Type
    none

Performance

  • Type
    throughput
  • Value
    100 Mbps

Capacity

  • Type
    manageable access points
  • Value
    24

Line Properties

  • Line Coding Format
    16 QAM, 64 QAM, CCK, DQPSK, QPSK
