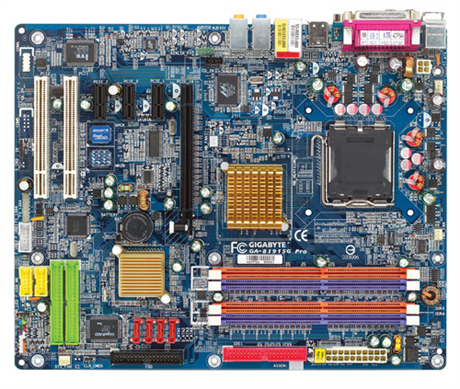

Intel® 915G Chipset

Print
Intel® 915G Chipset

Supports LGA775 Intel® Pentium® 4 processor 3.20GHZ FSB800 with HT technology
Integrated Intel® Graphic Media Accelerator 900
Supports dual channel DDR 400 memory architecture
Features PCI-Express x1, Serial-ATA,
Article Number: 000789
30,00 CHF
Gigabye
Stock: 4
Description
CPU
  1. LGA 775 Intel® Pentium® 4 3.20GHZ
Chipset North Bridge:
  1. Intel® 915G
South Bridge:
  1. Intel® ICH6
  2. ITE 8212 GigaRAID controller
  3. Marvell 8001 Gigabit Ethernet controller
  4. TI IEEE 1394
  5. CMedia 9880 audio codec
  6. 2 x 4Mbit flash ROM
Front Side Bus
  1. 800 / 533 MHz FSB
Memory
  1. Dual Channel DDR 400 / 333
  2. 4 x DIMM slots
  3. 4GB
Expansion Slots
  1. 1 x PCI Express x16
  2. 3 x PCI Express x1
  3. 2 x PCI
Internal I/O Connectors
  1. 1 x FDD
  2. 3 x cooling fan pin headers
  3. 2 x USB 2.0 (supports 4 ports)
  4. 1 x CD in
  5. 1 x 24-pin ATX power connector
  6. 1 x 4-pin ATX 12V power connector
  7. 1 x UltraDMA 100/66 IDE
  8. 2 x UltraDMA 133 IDE (for HDDs only)
  9. 4 x SATA
Back Panel Connectors
  1. 1 x VGA
  2. 1 x RJ45 LAN
  3. 1 x LPT
  4. PS/2 (Keyboard/Mouse)
  5. 2 x SPDIF (In/Out)
  6. 4 x USB 2.0
  7. 6 x audio ports (Line In / Line Out / MIC In / Surround Speaker Out(Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
H/W Monitoring
  1. Hardware detecting and reporting for case open, power-in voltage, CPU voltage and fan speed
  2. ITE 8712F
  3. System health status auto-detect and report by BIOS
Unique Features
  1. C.I.A. 2 (CPU Intelligent Accelerator 2)
  2. M.I.B. 2 (Memory Intelligent Booster 2)
  3. EasyTune™ 5
  4. M.I.T. (Motherboard Intelligent Tweaker)
  5. S.O.S. (System Overclock Saver)
  6. Download Center
  7. C.O.M. (Corporate Online Management)
  8. Miracle of Xpress3

Form Factor
  1. ATX
  2. 305mm x 244mm
